- The 909ECR model features a short tail swing design. On this model, if you are working in a confined space the short tail swing ensures safe and easy operation within a confined space.
- The fuel efficient, Stage V / Tier 4F certified Yanmar 4TNV98C-SLY engine provides proven and reliable power.
- The hydraulic system provides a load sensing and flow sharing capability leading to operational precision, efficient performance and greater controllability.
- When it works alongside obstacles, the swing post and cylinder stay within the tracks when in an offset position, so that you can avoid the risk of damage to your machine.
- The float function can be enabled with a toggle switch on the right side of the control panel. Because you don’t have to adjust the blade height during travel, cleanup and backfilling will be easier.

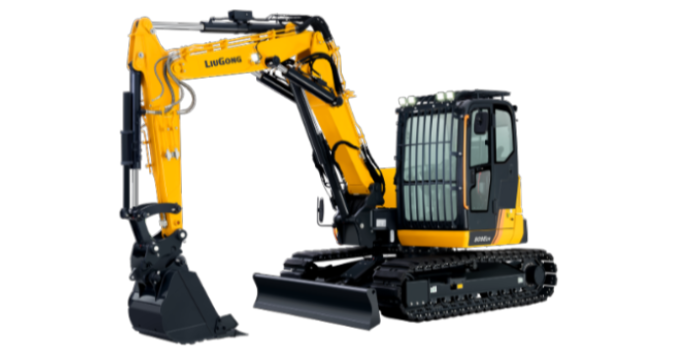

909ECR
Operating Weight:
8,700 kg
Rated Power:
46.2 kW
Bucket Capacity:
0.1-0.5 m?
909ECR
Unit：
- Metric
- U.S
Product Features
909ECR
909ECR
909ECR
909ECR
909ECR
909ECR
Specifications
| Operating weight | 8700 kg |
| Engine power | 46.2 kW (62.0 hp) @ 2200 rpm |
| Std. Bucket capacity | 0.28 m? |
| Travel speed(High) | 4.8 km/h |
| Travel speed(Low) | 2.4 km/h |
| Maximum swing speed | 10.5 rpm |
| Arm breakout force | 37 kN |
| Bucket breakout force | 63 kN |
| Shipping length | 6200 mm |
| Shipping width | 2200 mm |
| Shipping height | 2710 mm |
| Track shoe width (std) | 450 mm |
| Boom | 3375 mm |
| Arm | 2100 mm |
| Digging reach | 7264 mm |
| Digging reach on ground | 7082 mm |
| Digging depth | 4540 mm |
| Vertical wall digging depth | 3963 mm |
| Cutting height | 6525 mm |
| Dumping height | 4577 mm |
| Tail swing radius | 1410 mm |
| Dozer-up | 510 mm |
| Dozer-down | 470 mm |
| Swing boom left rotation | 65 ° |
| Swing boom right rotation | 55 ° |
| Model | Yanmar 4TNV98C-SLY |
| Emission | EU Stage V / EPA Tier 4F |
| System maximum flow | 209 L/min ( 55 gal/min) |
| System pressure | 29 MPa |
